H200 Performance Gains: How Modern Accelerators Deliver 110X in HPC

FAQs

• What makes the NVIDIA H200 GPU particularly well-suited for high-performance computing (HPC) and AI workloads?

  The NVIDIA H200 GPU is specifically designed to overcome memory bottlenecks that limit performance in modern HPC and AI environments, especially with large language models (LLMs) and complex scientific simulations. Its key features include a substantial 141GB of HBM3e memory, offering nearly double the capacity of the H100 and an impressive 4.8 TB/s of memory bandwidth. This significantly increased memory and bandwidth allow the H200 to handle larger datasets and models directly in GPU memory, reducing the need for costly memory swaps and eliminating “fetch stalls” that can throttle performance. Furthermore, it incorporates the Gen 2 Transformer Engine for accelerated matrix math and sparsity handling, and NVLink fabric, which facilitates better parallelisation and concurrent execution of multiple models, making it ideal for memory-intensive applications.

• How does the H200 achieve such significant performance gains, such as the reported 110X improvement in genomics?

  The H200 achieves its remarkable performance gains through a combination of architectural breakthroughs that directly address common bottlenecks in HPC and AI. Firstly, its massive 4.8 TB/s memory bandwidth is crucial for eliminating the data transfer bottlenecks that often slow down token-level throughput in LLMs and data-intensive scientific simulations. Secondly, the integration of the Transformer Engine Gen 2 provides significantly faster matrix mathematical execution and improved sparsity handling, which are critical for the efficiency of LLMs. Lastly, the enhanced parallelisation capabilities enabled by NVLink and its large memory residency allow for multiple models or simulations to run concurrently without performance degradation due to memory swapping, leading to dramatic reductions in processing times, as exemplified by the 110X speedup in genomics research.

• What are the key performance differences between the H200, H100, and A100 GPUs?

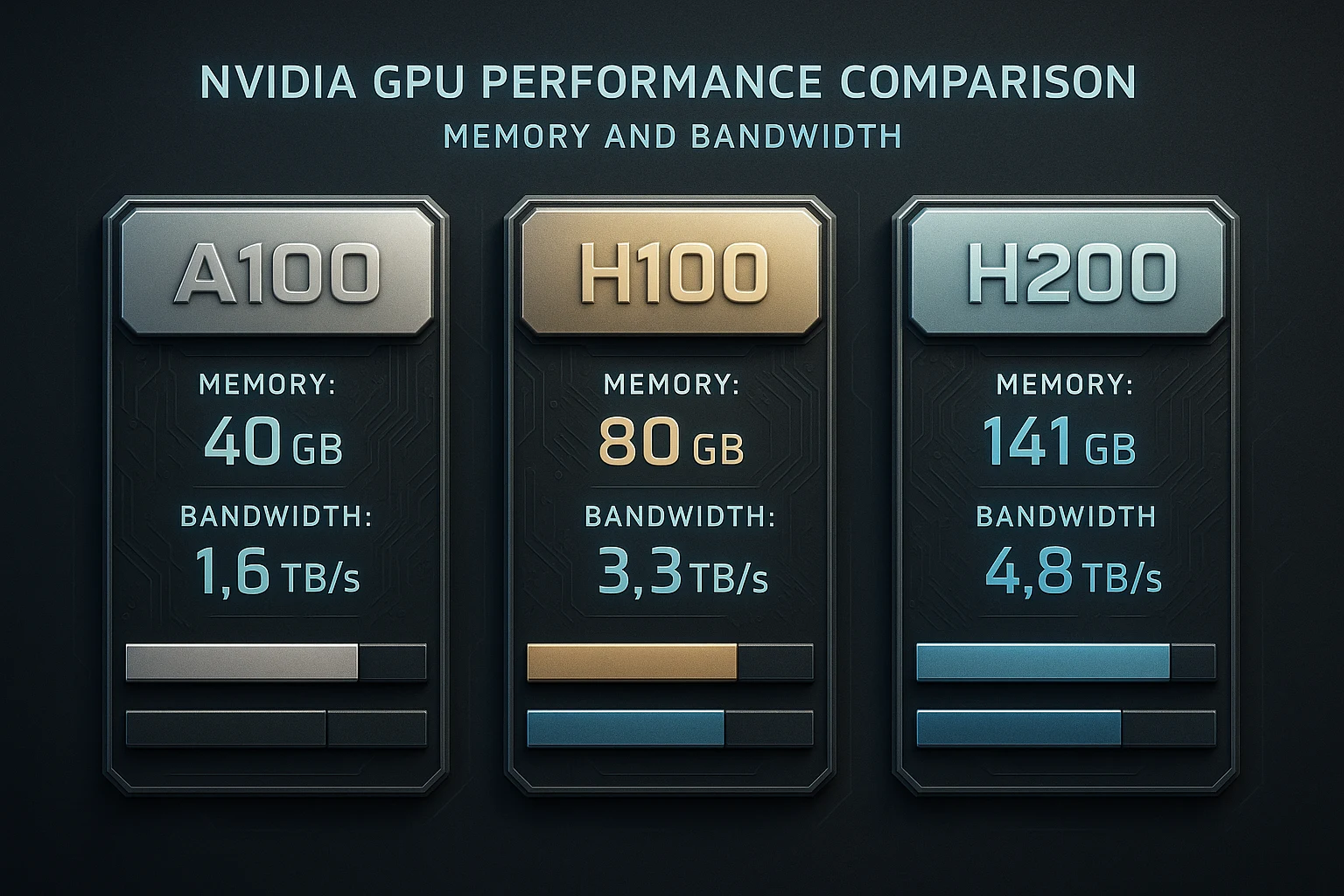

  The NVIDIA H200 represents a significant generational leap over its predecessors. The A100 (2020) offered 40GB of memory with 1.6 TB/s bandwidth and no Transformer Engine. The H100 (2022) improved upon this with 80GB of memory, 3.35 TB/s bandwidth, and the Gen 1 Transformer Engine, delivering over 1,000 peak FP8 TFLOPS. The H200 (2024) further elevates performance with 141GB of HBM3e memory, a substantial 4.8 TB/s bandwidth, and the more advanced Gen 2 Transformer Engine, boasting over 1,100 peak FP8 TFLOPS. These specifications translate into tangible benefits, with the H200 supporting more concurrent users and achieving significantly lower latency and higher token throughput in LLM inference benchmarks compared to the H100 and A100.

• In which specific real-world HPC applications is the H200 making the most significant impact?

  The H200 is revolutionising real-time HPC applications that are inherently memory-intensive. Its capabilities are particularly impactful in:



  • Climate Modelling: Enabling the processing of decades of atmospheric data in a single pass, accelerating long-term climate predictions.
  • Computational Fluid Dynamics (CFD): Allowing for highly complex airflow simulations to run up to five times faster, critical for industries like aerospace and automotive.
  • Molecular Dynamics: Facilitating the execution of million-atom simulations in hours rather than days, significantly speeding up drug discovery and materials science research.



  In all these areas, the H200’s ample memory and bandwidth directly address the demanding memory-bound execution patterns, providing unprecedented speed and efficiency.

• How does the H200's performance impact the total cost of ownership (TCO) for enterprises?

  The H200 significantly improves the total cost of ownership (TCO) by enabling more efficient resource utilisation. Because a single H200 GPU can support a much higher number of concurrent users and achieve faster throughput compared to previous generations (e.g., 160 users on an H200 node versus 80 on an H100 node for LLM inference), enterprises can accomplish more work with fewer GPUs. This reduction in the number of required GPUs directly translates to lower operational costs, including reduced power consumption, less cooling infrastructure, less rack space, and potentially lower software licensing fees. For instance, the cost per user for LLaMA 13B inference drops from approximately $52.50 on an H100 node to $37.50 on an H200 node, representing a substantial saving.

• When should an organisation choose an H200 over an H100 for their specific workloads?

  The choice between an H200 and an H100 depends on the specific workload’s primary demands:



  • GenAI Inference: For generative AI inference, particularly where latency below 100 ms is critical, the H200 is the superior choice due to its larger memory and significantly faster token generation capabilities.
  • Scientific Simulations: For memory-bound scientific simulations (e.g., molecular dynamics, climate modelling), the H200’s 141GB of HBM3e memory provides the necessary capacity to handle large datasets and complex models efficiently without offloading to slower system memory.
  • LLM Training: For LLM training workloads that prioritise high throughput and strong scaling across multiple GPUs, the H100 remains a highly competitive option. While the H200 offers memory advantages, the H100’s architecture is still very effective for distributed training paradigms.



  Ultimately, for workloads that are heavily constrained by memory capacity or require extremely low inference latency, the H200 offers a clear advantage.

• Can you provide an example of how to profile LLM inference on an H200?

  Profiling LLM inference on an H200 typically involves loading a large model that benefits from its ample memory directly onto the GPU and measuring its performance. Here’s a Python code snippet using the Hugging Face Transformers library and PyTorch:



  import torch

  from transformers import AutoModelForCausalLM, AutoTokenizer

  # Load a large language model (e.g., Llama-2-70b)

  # device_map=”auto” intelligently distributes the model if it exceeds single GPU memory,

  # but H200’s 141GB can handle many large models in full.

  model = AutoModelForCausalLM.from_pretrained(“meta-llama/Llama-2-70b”, torch_dtype=torch.float16, device_map=”auto”)

  tok = AutoTokenizer.from_pretrained(“meta-llama/Llama-2-70b”)

  # Prepare input prompt and move it to the GPU

  inputs = tok(“Describe H200 GPU performance”, return_tensors=”pt”).input_ids.to(“cuda”)

  # Generate output tokens and measure performance (e.g., time taken, tokens generated)

  with torch.no_grad():

  outputs = model.generate(inputs, max_new_tokens=200)

  # At this point, you would add profiling tools (e.g., torch.cuda.Event, time.time())

  # to measure latency and calculate token throughput based on the generated output.

  # Expect memory usage for a 70B model to spike around ~120 GB, which the H200 handles effortlessly.



  This code loads a 70 billion parameter model, which would typically exceed the memory of an H100 and require sharding across multiple GPUs. The H200’s 141GB memory allows such models to reside entirely on a single GPU, streamlining inference and reducing latency.

• What are the key architectural features that contribute to the H200's performance advantage?

  The H200’s performance advantage stems from several core architectural features:



  • HBM3e Memory (141 GB): This next-generation High Bandwidth Memory provides nearly twice the capacity of the H100, crucial for loading massive AI models and complex simulation datasets directly into GPU memory, thereby reducing memory bottlenecks and improving overall throughput.
  • 4.8 TB/s Bandwidth: This represents a 1.4x increase in bandwidth over the H100. This higher data transfer rate ensures that the GPU can rapidly access model weights and data, eliminating “fetch stalls” that often limit the speed of memory-bound applications.
  • Gen 2 Transformer Engine: This specialised engine significantly accelerates FP8 precision computations, which are vital for efficient LLM inference. It also includes support for sparsity, further optimising performance by skipping unnecessary calculations.
  • NVLink Fabric: This high-speed interconnect enables efficient communication between multiple H200 GPUs. It facilitates advanced capabilities such as model sharding across GPUs, concurrent execution of multiple AI sessions, and maintaining memory-resident pipelines, all of which are essential for scaling HPC and AI workloads.



  These features collectively drive real architectural shifts, enabling the H200 to redefine performance in memory-bound AI and HPC.
