H200 GPU Memory Bandwidth: Unlocking the 4.8 TB/s Advantage for AI at Scale

FAQs

• What is the significance of the NVIDIA H200 GPU's memory bandwidth in AI workloads?

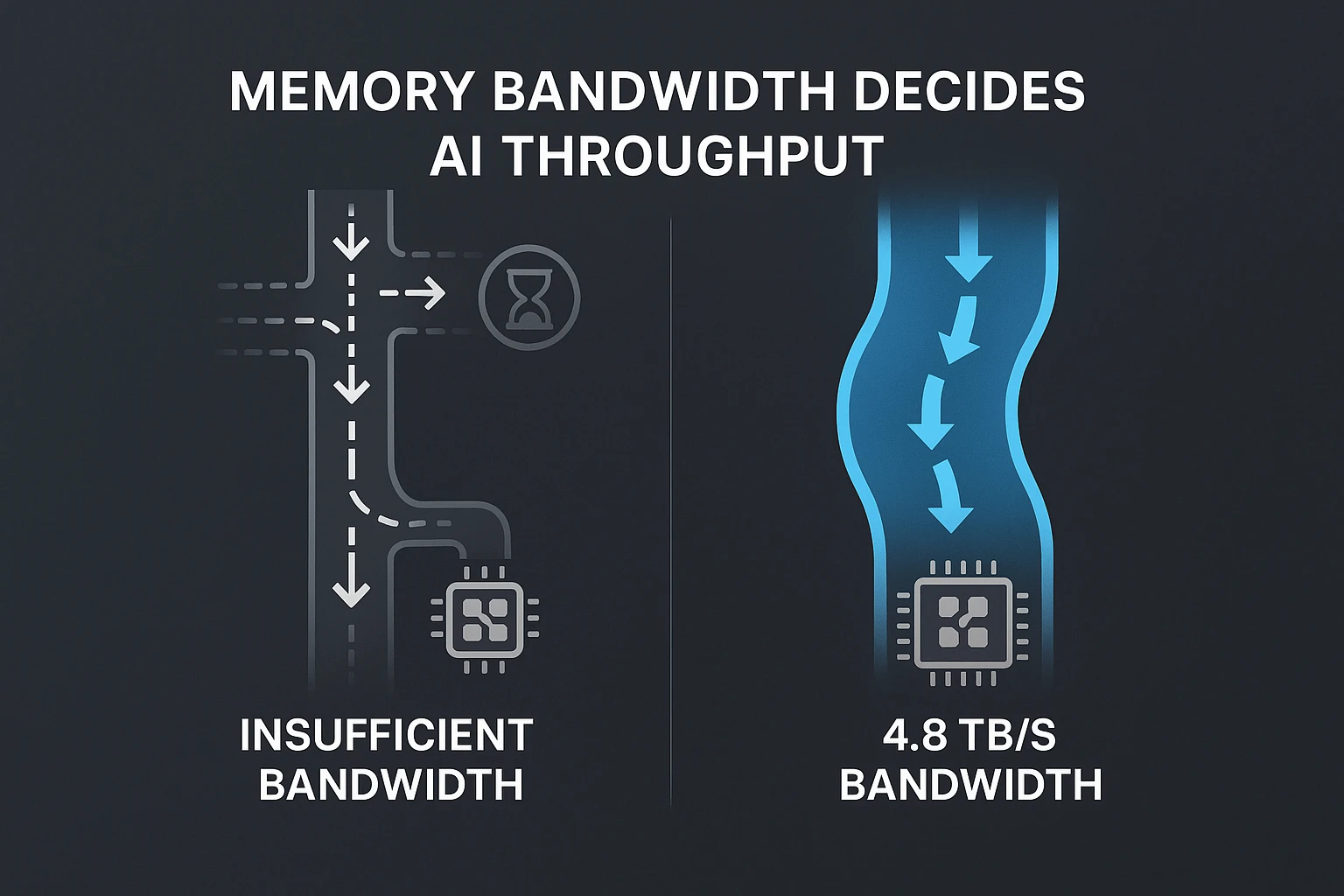

  The NVIDIA H200 GPU features a remarkable 4.8 terabytes per second (TB/s) memory bandwidth, powered by next-generation HBM3e technology. While raw compute power (FLOPs, core counts) often garners attention in AI infrastructure, for demanding workloads like large language models (LLMs) and generative AI, memory bandwidth is the critical factor determining overall throughput and efficiency. This high bandwidth ensures that the GPU’s Tensor Cores are continuously supplied with data, preventing stalls and maximising utilisation. Without sufficient memory bandwidth, even powerful processing units would be underutilised, leading to slower training times and increased operational costs.

• How does HBM3e contribute to the H200's impressive memory bandwidth?

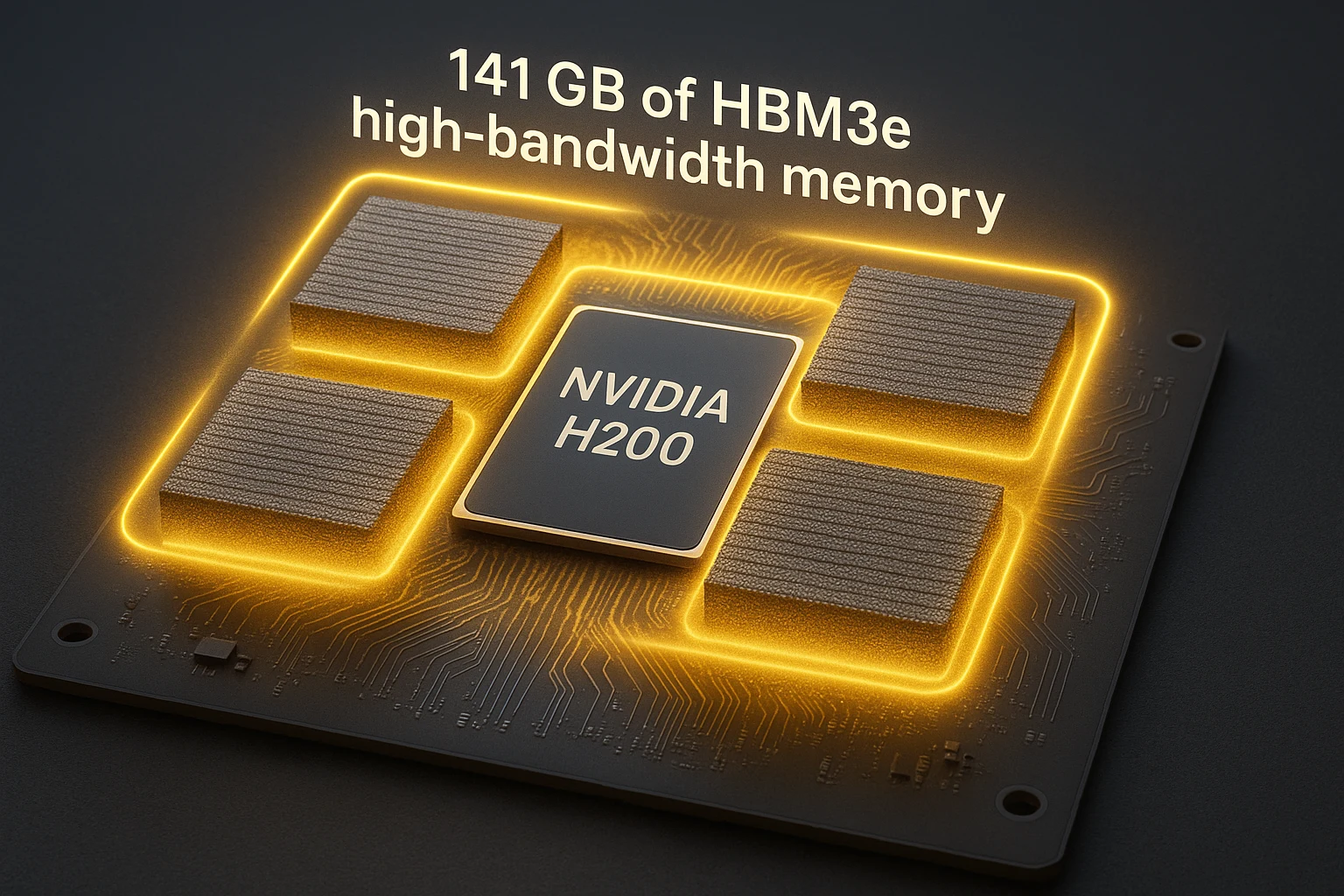

  The H200’s 4.8 TB/s memory bandwidth is fundamentally built upon 141 GB of HBM3e (High-Bandwidth Memory 3e). HBM3e offers a 76% increase in memory capacity over its predecessor, HBM3, and a significant boost in peak throughput. This is achieved through several advancements: higher per-stack transfer rates (up to approximately 9.2 Gbps per pin), wider interfaces that enable multi-stack parallelism, and reduced latency when memory is accessed concurrently. These improvements allow the H200 to process larger data batches and longer sequence lengths without having to offload data to slower, external memory like DDR or PCIe-attached memory.

• Why is high memory bandwidth becoming increasingly crucial for modern AI workloads?

  High memory bandwidth is more important than ever for today’s advanced AI workloads due to several factors:



  • Large Language Models (LLMs) with Longer Context Windows: Newer LLMs frequently process context windows of 8K to 32K tokens, which significantly increases the memory fetch demands for each forward pass.
  • Multi-Modal AI: Models that integrate different data types like text, vision, and speech require heterogeneous data streams to be loaded simultaneously, putting a substantial strain on memory bandwidth.
  • Retrieval-Augmented Generation (RAG): RAG pipelines dynamically pull large embedding chunks or document vectors into GPU memory during inference, causing unpredictable bursts in bandwidth demand.
  • Fine-Tuning with Large Batches: Even methods that reduce parameter updates, such as LoRA/QLoRA, are still gated by how quickly activations can move through the memory stack.
• What are some key architectural principles for leveraging the H200's 4.8 TB/s advantage?

  To truly exploit the H200’s substantial memory bandwidth, enterprises should adopt specific architectural design principles:



  • Model Parallelism Alignment: Partitioning tensor and pipeline parallel operations in a way that minimises cross-node memory transfers.
  • NVLink/NVSwitch-Aware Topologies: Prioritising and maximising intra-node bandwidth through NVLink and NVSwitch before resorting to inter-node links.
  • Prefetching & Streaming Data Loaders: Implementing mechanisms that overlap I/O operations with computation to ensure the Tensor Cores are always active and never idle.
  • Mixed Precision with Transformer Engine: Utilising FP8 precision to reduce memory footprint and accelerate data transfers without compromising accuracy.
• What are common bottlenecks that can limit the real-world performance of the H200 GPU, despite its high bandwidth?

  Even with the H200’s exceptional memory bandwidth, poorly optimised software stacks and infrastructure can lead to significant performance losses. Common bottlenecks include:

  • PCIe Oversubscription: When staging datasets, the PCIe bus can become a bottleneck if not managed efficiently.
  • Non-RDMA Network Fabrics: Standard network fabrics can choke multi-node training by failing to support Remote Direct Memory Access (RDMA).
  • Container Stack Mismatches: Incompatibilities or misconfigurations in container environments (e.g., CUDA/NCCL versions) can disable GPUDirect paths, which are essential for high-speed data transfer.
  • Inefficient Checkpointing: Poorly implemented checkpointing strategies can flood I/O during mid-training, causing significant delays.
• What tangible real-world impact has optimising H200 GPU memory bandwidth demonstrated?

  Optimising H200 GPU memory bandwidth has a direct and significant impact on AI deployment metrics. According to Semifly’s deployments, optimisations have led to:



  • Sustained GPU Utilisation: Increased from approximately 58% to over 92%.
  • Tokens/sec (70B FP8 Model): Boosted from 210K to 370K.
  • Epoch Time (1 Trillion Tokens): Reduced from 9.8 days to 5.9 days.
  • Power Cost per 1K Tokens: Decreased to 64% of the original cost.

  These results highlight that the H200’s 4.8 TB/s bandwidth, when correctly harnessed, directly shortens training timelines and improves inference latency, leading to substantial efficiency gains and cost reductions.

• How does a company like Semifly assist in maximising the H200's bandwidth utilisation?

  Semifly employs an “architecture-first” approach to ensure that H200 deployments achieve peak real-world throughput. Their services go beyond mere hardware specifications and include:



  • Mapping Model Graph Execution to Memory Topology: Aligning how the AI model processes data with the physical memory layout to minimise bottlenecks.
  • Optimising Network Fabrics for GPUDirect RDMA: Ensuring that the network infrastructure supports high-speed, direct data transfer between GPUs.
  • Benchmarking Memory-Bound Kernels Under Production Loads: Testing and refining performance for operations that are heavily dependent on memory bandwidth in real-world conditions.
  • Delivering Baseline-to-Optimised Performance Reports: Providing clear data on performance improvements achieved through their optimisations.



  This comprehensive approach aims to ensure that the investment in H200 GPUs delivers its maximum potential from the outset.

• Why is memory bandwidth considered the "new battleground" in AI compute?

  While teraflops indicate the theoretical processing potential of an AI system, “terabytes per second” (memory bandwidth) is increasingly the determinant of actual performance and outcome in real-world AI applications. The NVIDIA H200’s 4.8 TB/s GPU memory bandwidth represents a significant technological advancement. However, this leap forward is only effective if the underlying architecture, data pipelines, and orchestration stack are specifically designed and ready to fully exploit it. The ability to efficiently feed data to the powerful Tensor Cores without interruption is now the critical factor differentiating high-performing, resilient AI deployments from underutilised systems, making memory bandwidth the pivotal area for innovation and optimisation in AI infrastructure for the future.
